150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor

Chang Hong Mining Machinery Co., Ltd.
Contact Now
    Buy cheap 150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor from wholesalers

    Buy cheap 150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor from wholesalers
    • Buy cheap 150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor from wholesalers
    • Buy cheap 150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor from wholesalers

    150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor

    Ask Lasest Price
    Brand Name : Changhong
    Certification : ISO,SGS,SONCAP
    Price : USD980~2500/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor

    150L SUS304 Industrial Bucket Elevators Z Type Vertical Bucket Conveyor

    Description of product:

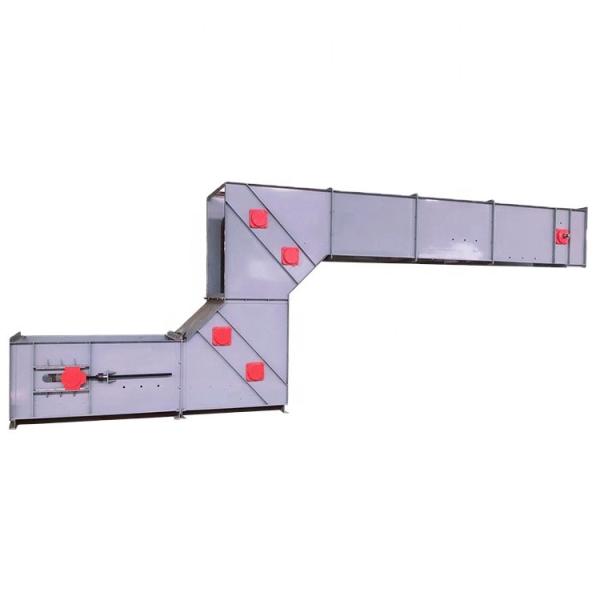

    Bucket conveyor (also called Z type bucket conveyor) consists of frame, buckets, chains, sprockets, control box, and other accessory are used to vertically convey bulk or lose materials efficiently. Bucket elevators can elevate a variety of bulk materials from light to heavy and from loose, flowing fine materials to larger, partially fragile objects. There are options for buckets that are gentle on high-value consumer products such as cereals, pasta, confectionery, coins, animal feet, and the like. They are commonly designed in a "Z-Elevator" or "C-Elevator" configuration.


    Bucket conveyor main Features

    1) The buckets material can be food grade PP material or SUS304, which can resistance high and low temperature.

    2) Continuous overlapping bucket lift virtually eliminates spillage.

    3) Gentle handling and quiet operation.

    4) Single or multiple discharge points available.

    5) Low noise and maintenance.

    Model Selection>>>

    Technical Feature1. Speed is controlled by frequency converter, easy to control, and more reliable.
    2. Easy to install and maintain
    OptionsBelt or chainplate
    Stock Bin: 150L/200L/300L
    Machine Frame:304SS or Mild steel Frame
    ModelUZC01
    Convey Height1800-15000 mm
    Belt Width220-800 mm
    Bucket MaterialWhite PP (Food grade)
    Vibrator Hopper Size650L×650W mm-1200x1200mm
    Power supply220V/50HZ or 60HZ Single Phase, 0.75KW
    Packing Dimension6000L×900W×1000H mm
    Gross Weight650kg

    Application>>>

    The conveyor is applicable for vertical lifting of granule material such as corn, jerry, snack, candy, nuts, plastic and chemical products, small hardware, vegetable, fruit, and so on. For this machine, the bucket is driven by the chains to lift.
