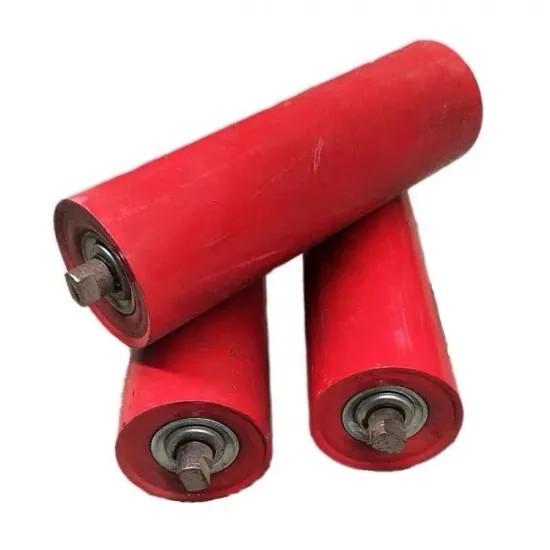

Waterproof Heavy Duty Gravity Belt Conveyor Roller For Mining Industry

Advantage
Tenon joint slot, Easy to install and replace, Improve installation efficiency by 15%. Automatic welding equipment, 1) Ensure concentric structure, reduce wear and tear, extend the life of the idler by about 30%, run more smoothly, and save power; 2) High production efficiency and short delivery time; 3) The welds are neat and the precision is high.
				The thickness of the pipe used is 10% higher than the standard, The structure is stronger, The support weight can be increased by 20%. Use Chinese Top3 bearing brands, HRB, ZWZ and LYC, or according to customer requirements, use international brands SKF, FAG, NSK. Ensure that the core components of the idler are of the highest quality, Extend the life of the idler.
According to customer requirements, spray paint or galvanizing process can be used. The thickness of the paint layer can reach 30-40um, and the thickness of galvanizing can reach 30-40um, Improve the corrosion resistance and prolong the service life. The shelf is processed by sand blasting before painting, The adhesion of the paint is stronger, the anti-corrosion performance is improved, The overall service life is increased by 25%.
Specification
DATE SHEET
Blet Wide B	D	L	Model	Blet Wide B	D	L	Model
400	63.5	160	G101	500	63.5	200	G102
	76		G201		76		G202
	89		G301		89		G302
650	76	250	G203	800	89	315	G304
	89		G303		133		G404
	108		G403		159		G504
1000	108	380	G405	1200	108	465	G406
	133		G505		133		G506
	159		G605		159		G606
1400	108	530	G408	1600	133	600	G509
	133		G508		159		G609
	159		G608		194		G709
1800	133	670	G510	2000	133	750	G512
	159		G610		159		G612
	194		G710		194		G712
2200	133	800	G513	2400	159	900	G614
	159		G613		194		G714
	194		G713		219		G814
Work process: Project parameters, scenarios ---- determine the specifications and drawings ---- confirm the quotation, sign the contract ---- perform the contract for production ---- inspection delivery and transportation ---- guide installation ---- After-sales service

Our company is science and technology development, production and operation, technical services in one, with 15 years of history of the enterprise I plant to rely on scientific and technological progress, adhere to the quality and efficiency of the road, formed from the new product development, manufacturing, sales and service of the whole process of quality assurance system.

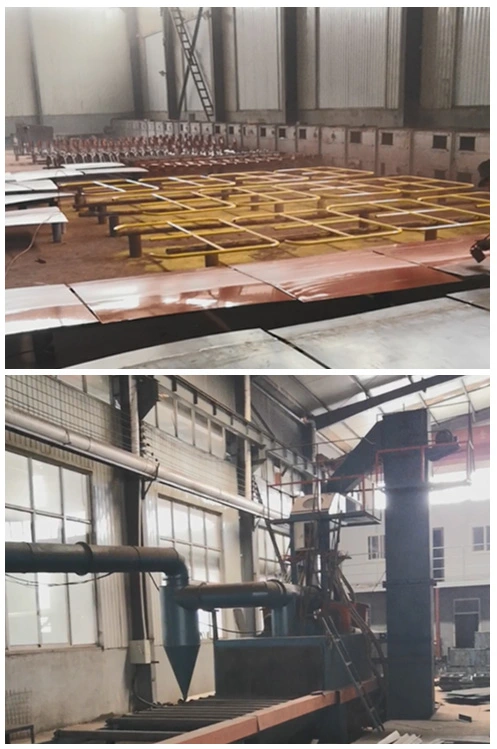

I plant has a complete set of quality inspection system, strict management procedures, advanced testing equipment, testing means complete, from raw materials into the factory to the factory, each link is strictly checked. Enterprises with quality testing center, the center is equipped with laboratory, hardness laboratory, metallographic laboratory, testing room, mechanics laboratory, mechanical properties testing room, measuring and testing room, roller laboratory. A variety of testing equipment and equipment more than 30 units, mainly: length tester, ultrasonic flaw detector, wear testing machine, high frequency fatigue testing machine, all kinds of roller performance testing equipment, etc.. Through the above testing means, we can test and analyze the physical, chemical and mechanical properties of the finished products, semi-finished products and materials.

Our company has strong technical strength, product design using computer aided design and technology, has developed a number of domestic advanced level of new products, improve the market competitiveness of the product.
