Stainless Steel 6.5l Bucket Elevators For Transport Grain Sesame Bean
Bucket elevator
Continuous sand bucket elevators are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous sand bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.

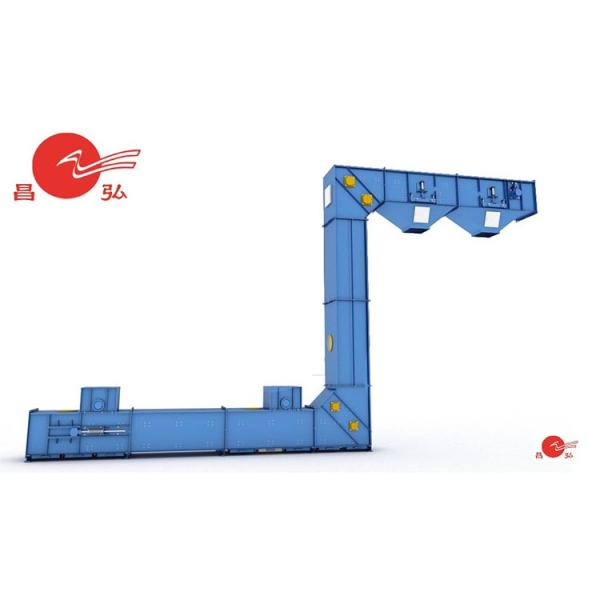

Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type sand bucket elevator, C type sand bucket elevator etc. Selection of the proper type of sand bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
| Bucket Specification Size | |||||||
| Item | Width (mm) | Volume (L) | Size | CH3-10 Drawing | |||
| a | h | d(H12) | j | ||||
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 | |
| CH6 | 470 | 6 | |||||
| CH10 | 870 | 10 | |||||
| CH15-35 Drawing | |||||||
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 | |
| CH20 | 560 | 20 | |||||
| CH25 | 690 | 25 | |||||
| CH30 | 815 | 30 | |||||
| CH35 | 940 | 35 | |||||
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
4. Make plans for choice according to the needs and special
requirements of users in different sectors;
1. Ensure product with high quality and pre-commissioning before
delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.
1 .advisory services: users encounter any problems in the use
process, can call the company for technical support
2.warranty: warranty period of the product, if quality problems,
the company responsible for the warranty service.
|
|
