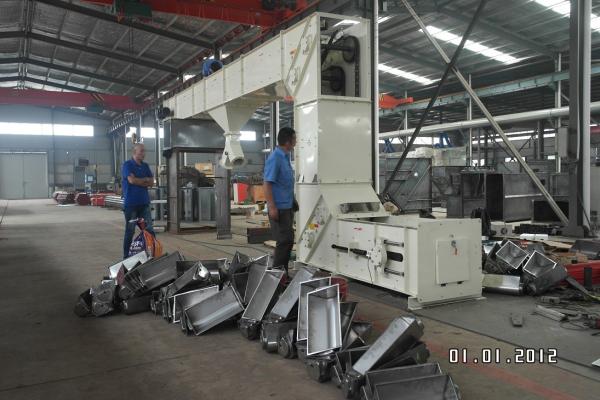

Alkali Resistant Belt Driven Elevator 200 Cubic Meters No Raise Dust
Z-type bucket elevator for acid and alkali resistant materials can reach 200 cubic meters with a high temperature of 800 degrees
Small rice mill vertical z type bucket elevator price
Continuous bucket elevators are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.
Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator, C type bucket elevator etc. Selection of the proper type of bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
| Sizing Table | ||||||||||
|
| CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 | ||
| Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 | ||
| Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 | |
| Distance | mm | 228.6 | 330 | |||||||
| Chain | QTY | -- | 2 | |||||||
| Pitch | mm | 38.1 | 66 | |||||||
| Single chain break loading(KN) minimum | 37.6 | 90 | ||||||||
| Chain Wheel | Teeth QTY | -- | 26 | 22 | ||||||
| Pitch cercle diameter | mm | 316.09 | 463.76 | |||||||
| Bucket running speed | m/s | ≤0.3 | ≤0.25 | |||||||
| Transmission shaft revolution | r/min | ≤0.3 | ||||||||
| Max elevating height | m | ≤45 | ||||||||
| Max horizontal transport distance | m | ≤100 | ||||||||
| Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 | ||||
| Bucket Specification Size | |||||||
| Item | Width(mm) | Volume(L) | Size | CH3-10 Drawing | |||
| a | h | d(H12) | j |
| |||
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 | |
| CH6 | 470 | 6 | |||||
| CH10 | 870 | 10 | |||||
|
| CH15-35 Drawing | ||||||
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 |
|
| CH20 | 560 | 20 | |||||
| CH25 | 690 | 25 | |||||
| CH30 | 815 | 30 | |||||
| CH35 | 940 | 35 | |||||
Can be used in any form (according to customer requirements)
Free design for customers
|
|
