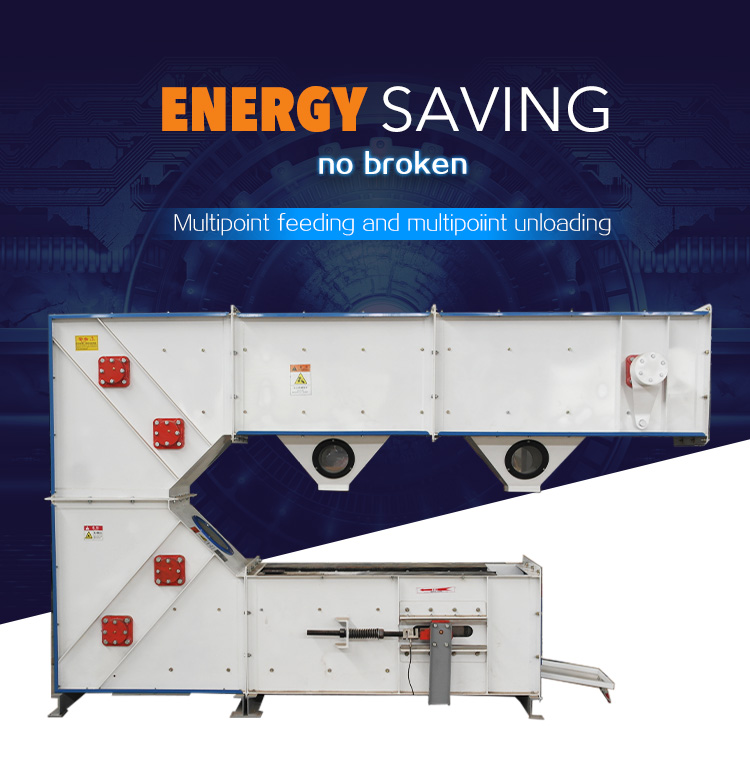

Small rice mill vertical z type bucket elevator price
Continuous bucket elevators are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.
Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator, C type bucket elevator etc. Selection of the proper type of bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
| Sizing Table | ||||||||||
| CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 | |||
| Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 | ||
| Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 | |
| Distance | mm | 228.6 | 330 | |||||||
| Chain | QTY | -- | 2 | |||||||
| Pitch | mm | 38.1 | 66 | |||||||
| Single chain break loading(KN) minimum | 37.6 | 90 | ||||||||
| Chain Wheel | Teeth QTY | -- | 26 | 22 | ||||||
| Pitch cercle diameter | mm | 316.09 | 463.76 | |||||||
| Bucket running speed | m/s | ≤0.3 | ≤0.25 | |||||||
| Transmission shaft revolution | r/min | ≤0.3 | ||||||||
| Max elevating height | m | ≤45 | ||||||||
| Max horizontal transport distance | m | ≤100 | ||||||||
| Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 | ||||
| Bucket Specification Size | |||||||
| Item | Width(mm) | Volume(L) | Size | CH3-10 Drawing | |||
| a | h | d(H12) | j | ||||
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 | |
| CH6 | 470 | 6 | |||||
| CH10 | 870 | 10 | |||||
| CH15-35 Drawing | |||||||
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 | |
| CH20 | 560 | 20 | |||||
| CH25 | 690 | 25 | |||||
| CH30 | 815 | 30 | |||||
| CH35 | 940 | 35 | |||||
Can be used in any form (according to customer requirements)
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code.
We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.
Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what's the package ?
A: All goods are packed in wooden box
|
|
