Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel

Chang Hong Mining Machinery Co., Ltd.
Contact Now
    Buy cheap Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel from wholesalers

    Buy cheap Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel from wholesalers
    • Buy cheap Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel from wholesalers
    • Buy cheap Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel from wholesalers

    Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel

    Ask Lasest Price
    Brand Name : Changhong
    Certification : ISO,SGS,SONCAP
    Price : USD980-2500/set
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100sets/month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel

    Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel

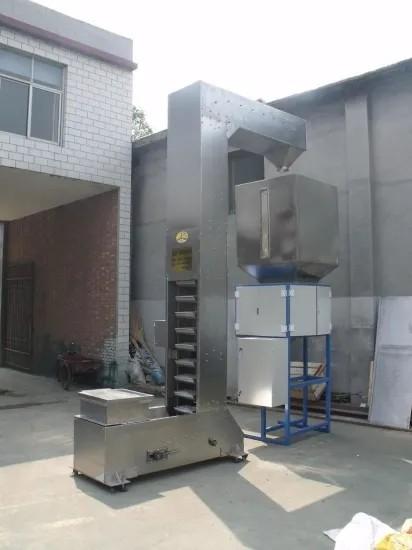

    Solid Food Grains Z Type Bucket Elevator for Food China

    Product Introduction:

    Z bucket elevator can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feedstuff, and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.



    Advantage:


    1. All elevators are equipped with an automatic chain tension device and built-in overload protection.
    2. Material of structure: Stainless steel 304 or carbon steel or others as required.
    3. The buckets are made of PP, ABS, stainless steel 304 or others as required.
    4. Strong sprocket(Nickle coating carbon steel, Stainless steel, Nylon, or others as required), running stably, and less noise.
    5. Conveying speed could be controlled by frequency converter or fixed (10m/min)
    6. Fully enclosed, keeping clean and sanitary. With inspection window.
    7. Stainless steel chain which is easy to maintain and long lifespan.

    Technical Parameter:

    Bucket volume1.0L1.8L3.8L6.5L

    Output

    2-3.5m3/h

    4-6m3/h
    6.5-8m3/h8.5-12m3/h
    Bucket materialPP, ABS, SS304, or other
    Body materialmild steel, stainless steel 304 or other
    No. of the discharge portSingle or Muti discharge port
    SpeedAdjustable or fixed
    Voltage(v)220V/50Hz, single phase
    380V/50Hz, three phases
    Or as required




    How to get Z Bucket Conveyor Machine? Please send us the listed questions for getting quotation.
    1. What's the material you are going to deal with
    2. What are the physical characteristics of the material
    Such as the size, temperature, density, moisture content etc
    3. What's the producing capacity you are going to achieve
    4. What is the lifting height of the elevator (distance between inlet and outlet)
