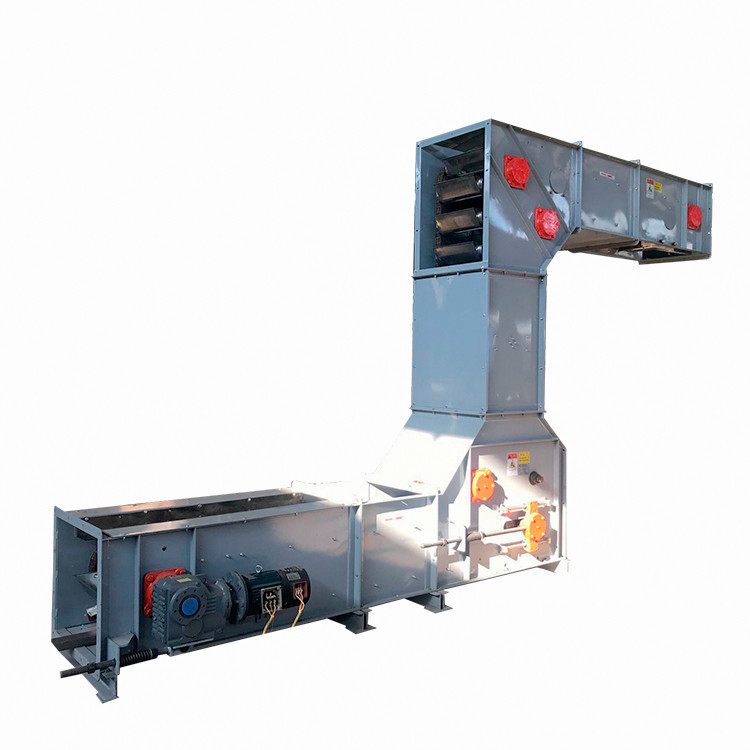

    Chain Conveyor Z Type Bucket Elevator High Lifting Height CE Certification

    Ask Lasest Price
    Brand Name : Changhong
    Model Number : CHZD
    Certification : CE
    Price : $8,000.00 /Unit
    Payment Terms : Western Union, T/T
    Supply Ability : 50 Unit/Units per Month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Chain Conveyor Z Type Bucket Elevator High Lifting Height CE Certification

    Chain Conveyor Z Type Bucket Elevator High Lifting Height CE Certification

    Chain Conveyor Z Type Bucket Elevator High Lifting Height CE Certification

    Continuous z type conveyors are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous z type conveyors have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.

    Main Features of z type bucket elevator

    1. Designed to handle a wide variety of bulk materials From average to very free-flowing
    2. Many different bucket and casing sizes available for capacities up to 15,000 cubic feet per hour
    3. Completely enclosed for dust and weather-tight operation
    4. Inlet section can be control fed or flood loaded with bulk materials.

    Sizing Table

    CHZD-3

    CHZD-6

    CHZD-10

    CHZD-15

    CHZD-20

    CHZD-25

    CHZD-30

    CHZD-35

    Transmit Mass

    100%

    m3/h

    6

    15

    22

    30

    45

    56

    68

    80

    75%

    4.5

    11

    16.5

    22.5

    33.5

    42

    51

    60

    Bucket

    Volume

    L

    3

    6

    10

    15

    20

    25

    30

    35

    Width

    mm

    370

    470

    870

    500

    560

    690

    815

    940

    Distance

    mm

    228.6

    330

    Chain

    QTY

    --

    2

    Pitch

    mm

    38.1

    66

    Single chain break loading(KN)

    minimum

    37.6

    90

    Chain Wheel

    Teeth QTY

    --

    26

    22

    Pitch cercle

    diameter

    mm

    316.09

    463.76

    Bucket

    running speed

    m/s

    ≤0.3

    ≤0.25

    Transmission shaft revolution

    r/min

    ≤0.3

    Max elevating height

    m

    ≤45

    Max horizontal transport distance

    m

    ≤100

    Total Power

    KW

    0.75-22

    1.1-22

    2.2-22

    5.5-22

    5.5-30

    Bucket Specification Size

    Item

    Width

    (mm)

    Volume

    (L)

    Size

    CH3-10 Drawing

    a

    h

    d(H12)

    j

    CH3

    370

    3

    235

    120

    Φ13

    20

    CH6

    470

    6

    CH10

    870

    10

    CH15-35 Drawing

    CH15

    500

    15

    340

    195

    Φ12

    45

    CH20

    560

    20

    CH25

    690

    25

    CH30

    815

    30

    CH35

    940

    35
