    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    Ask Lasest Price
    Brand Name : Changhong
    Model Number : CHEV
    Certification : ISO
    Price : 1-99 Units:$8,070.00
    Payment Terms : T/T, Western Union
    Supply Ability : 1-1 :15 days
    Delivery Time : 15days
    • Product Details
    • Company Profile

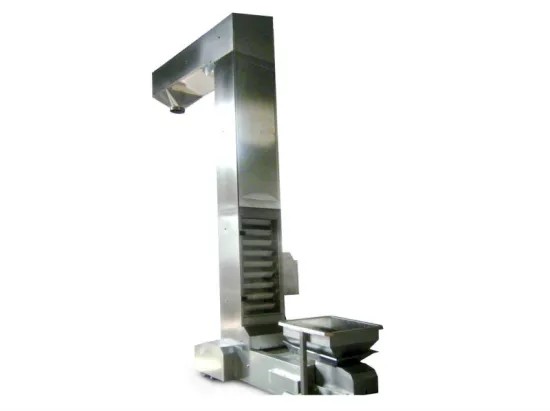

    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    Small rice mill vertical z type bucket elevator price

    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    Continuous bucket elevators are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.

    Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator, C type bucket elevator etc. Selection of the proper type of bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.

    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    Advantages:
    1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can fit temperatures from -10 to 120 degrees Fahrenheit.
    2. The bucket conveyor allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices
    3. All parts are easy to remove.
    4. The gear motor drived the machine has a stable performance to prolong the machine life and easy to maintenance.
    5.Optional Material: stainless steel and carbon steel.

    Sizing Table

    CHZD-3

    CHZD-6

    CHZD-10

    CHZD-15

    CHZD-20

    CHZD-25

    CHZD-30

    CHZD-35

    Transmit Mass

    100%

    m3/h

    6

    15

    22

    30

    45

    56

    68

    80

    75%

    4.5

    11

    16.5

    22.5

    33.5

    42

    51

    60

    Bucket

    Volume

    L

    3

    6

    10

    15

    20

    25

    30

    35

    Width

    mm

    370

    470

    870

    500

    560

    690

    815

    940

    Distance

    mm

    228.6

    330

    Chain

    QTY

    --

    2

    Pitch

    mm

    38.1

    66

    Single chain break loading(KN)

    minimum

    37.6

    90

    Chain Wheel

    Teeth QTY

    --

    26

    22

    Pitch cercle

    diameter

    mm

    316.09

    463.76

    Bucket

    running speed

    m/s

    ≤0.3

    ≤0.25

    Transmission shaft revolution

    r/min

    ≤0.3

    Max elevating height

    m

    ≤45

    Max horizontal transport distance

    m

    ≤100

    Total Power

    KW

    0.75-22

    1.1-22

    2.2-22

    5.5-22

    5.5-30

    ISO Chemical Material Cement Bucket Elevator Vertical Bucket Conveyor

    Bucket Specification Size

    Item

    Width(mm)

    Volume(L)

    Size

    CH3-10 Drawing

    a

    h

    d(H12)

    j

    CH3

    370

    3

    235

    120

    Φ13

    20

    CH6

    470

    6

    CH10

    870

    10

    CH15-35 Drawing

    CH15

    500

    15

    340

    195

    Φ12

    45

    CH20

    560

    20

    CH25

    690

    25

    CH30

    815

    30

    CH35

    940

    35

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are manufacturer.

    Q: How long is your delivery time?

    A: Generally it is 5 days for spare parts,it will take 2 weeks for customized conveyor machine.

    Q: Can you design according to our requirement?

    A: Of course, we can design automation solution according to your technical drawing and requirement. Please tell us your requirement and production process.

    Q: How to visit your factory?

    A: Welcome to visit our factory and we can pick you up from Airport.

    Q: When can i get your reply after inquiry?

    A: Within 24 hours.
