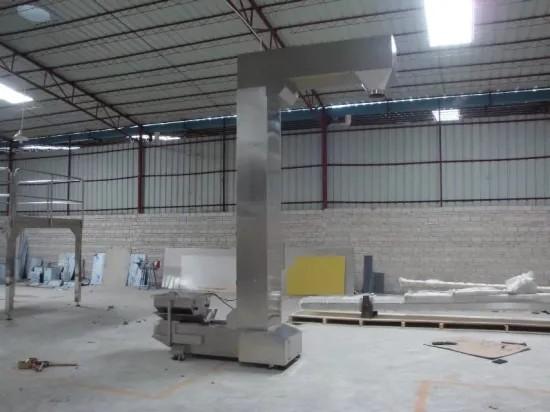

Heat Resistant Continuous Z Type Bucket Elevator Multi Point Feeding
This elevator is applicable to grain, food, feed and chemical industry etc departments granular materials vertical elevate. With computer combination scale and packaging machine combined quantitative automatic packaging system, widely used in food packaging industry.
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
Sizing Table | ||||||||||
| CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 | ||
Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 | ||
Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 | |
Distance | mm | 228.6 | 330 | |||||||
Chain | QTY | -- | 2 | |||||||
Pitch | mm | 38.1 | 66 | |||||||
Single chain break loading(KN) minimum | 37.6 | 90 | ||||||||
Chain Wheel | Teeth QTY | -- | 26 | 22 | ||||||
Pitch cercle diameter | mm | 316.09 | 463.76 | |||||||
Bucket running speed | m/s | ≤0.3 | ≤0.25 | |||||||
Transmission shaft revolution | r/min | ≤0.3 | ||||||||
Max elevating height | m | ≤45 | ||||||||
Max horizontal transport distance | m | ≤100 | ||||||||
Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 |
Bucket Specification Size | |||||||
Item | Width(mm) | Volume(L) | Size | CH3-10 Drawing | |||
a | h | d(H12) | j |
| |||
CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 | |
CH6 | 470 | 6 | |||||
CH10 | 870 | 10 | |||||
| CH15-35 Drawing | ||||||
CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 |
|
CH20 | 560 | 20 | |||||
CH25 | 690 | 25 | |||||
CH30 | 815 | 30 | |||||
CH35 | 940 | 35 |
Can be used in any form (according to customer requirements)
Free design for customers
Our Services & Strength
1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
![]() |
