    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

    Ask Lasest Price
    Brand Name : changhong
    Model Number : 35L
    Certification : 9001
    Price : 300-500usd
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 5-8weeks
    • Product Details
    • Company Profile

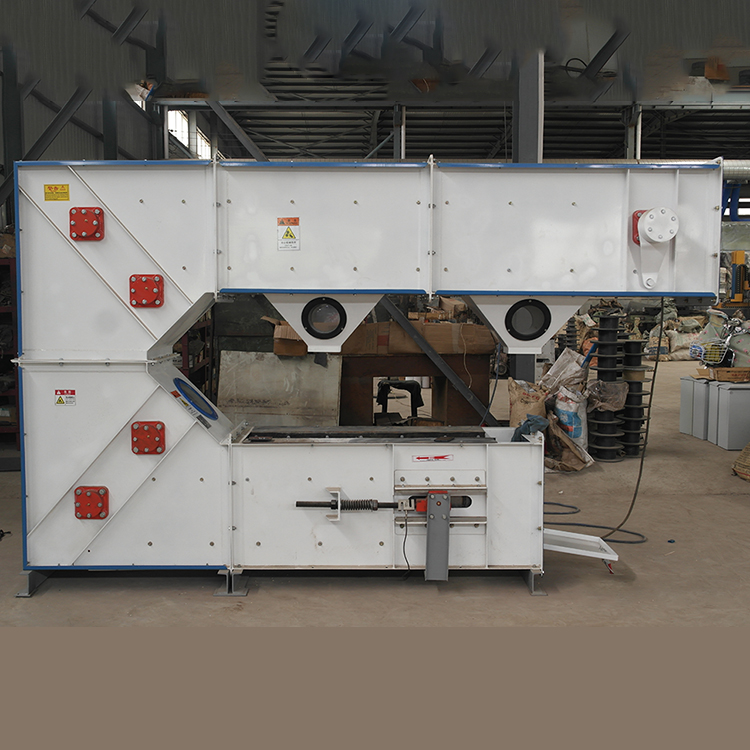

    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

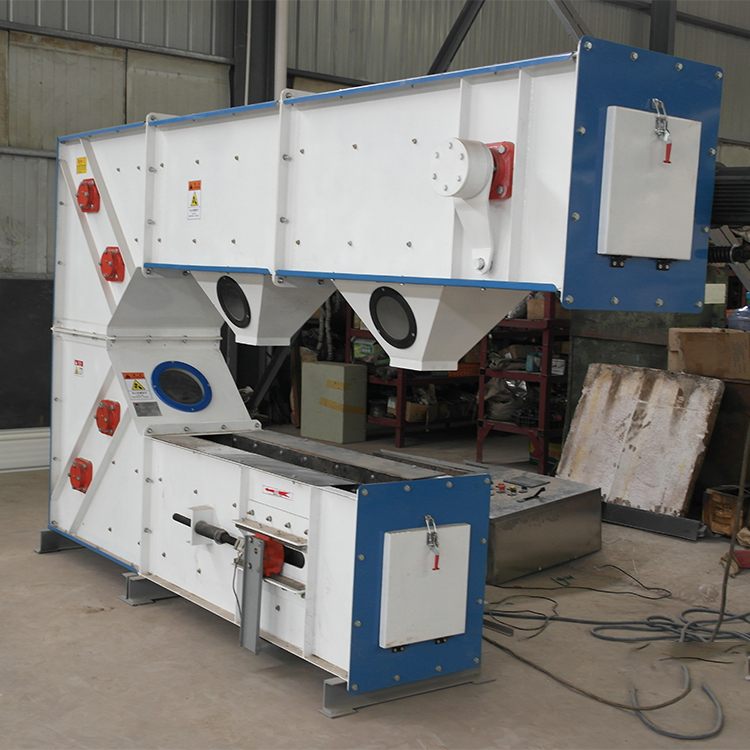

    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

    Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator calculations, C type bucket elevator calculations etc. Selection of the proper type of bucket elevator calculations depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.


    Application


    1) Chemical industry: bentonite,burnt lime,plastic granule.
    2) Food industry: nut,sugar, rice,grain,flour,snacks.
    3) Metallurgy, Mine industry: metal powder,screw.
    4) Fertilizer industry: all kinds of fertilizer.
    5) Waste treatment: cat sand,active carbon.

    6) Medicine industry:all kinds of medicine.


    Advantages

    A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)

    · Easy installation and operate

    · Energy saving

    · The material is zero broken

    · Heavy duty motor mount

    · Adjustable chain

    · Multipoint feeding and multipoiint unloading

    · no raise dust,no leak

    · Smooth running&quiet


    Sizing Table


    CHZD-3

    CHZD-6

    CHZD-10

    CHZD-15

    CHZD-20

    CHZD-25

    CHZD-30

    CHZD-35

    Transmit Mass

    100%

    m3/h

    6

    15

    22

    30

    45

    56

    68

    80

    75%

    4.5

    11

    16.5

    22.5

    33.5

    42

    51

    60

    Bucket

    Volume

    L

    3

    6

    10

    15

    20

    25

    30

    35

    Width

    mm

    370

    470

    870

    500

    560

    690

    815

    940

    Distance

    mm

    228.6

    330

    Chain

    QTY

    --

    2

    Pitch

    mm

    38.1

    66

    Single chain break loading(KN)

    minimum

    37.6

    90

    Chain Wheel

    Teeth QTY

    --

    26

    22

    Pitch cercle

    diameter

    mm

    316.09

    463.76

    Bucket

    running speed

    m/s

    ≤0.3

    ≤0.25

    Transmission shaft revolution

    r/min

    ≤0.3

    Max elevating height

    m

    ≤45

    Max horizontal transport distance

    m

    ≤100

    Total Power

    KW

    0.75-22

    1.1-22

    2.2-22

    5.5-22

    5.5-30


    Bucket Specification Size

    Item

    Width

    (mm)

    Volume

    (L)

    Size

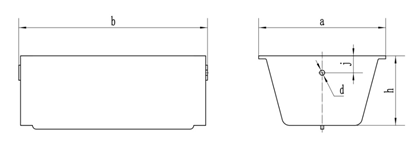

    CH3-10 Drawing

    a

    h

    d(H12)

    j

    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

    CH3

    370

    3

    235

    120

    Φ13

    20

    CH6

    470

    6

    CH10

    870

    10


    CH15-35 Drawing

    CH15

    500

    15

    340

    195

    Φ12

    45

    Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials

    CH20

    560

    20

    CH25

    690

    25

    CH30

    815

    30

    CH35

    940

    35
