    Carbon Steel Industrial Bucket Elevators Heat Resistant Energy Saving

    Ask Lasest Price
    Brand Name : Changhong
    Model Number : CHEV
    Certification : ISO
    Price : 1-99 Units:$688.00
    Payment Terms : T/T, Western Union
    Supply Ability : 1-1 :15 days
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Carbon Steel Industrial Bucket Elevators Heat Resistant Energy Saving

    Carbon Steel Industrial Bucket Elevators Heat Resistant Energy Saving

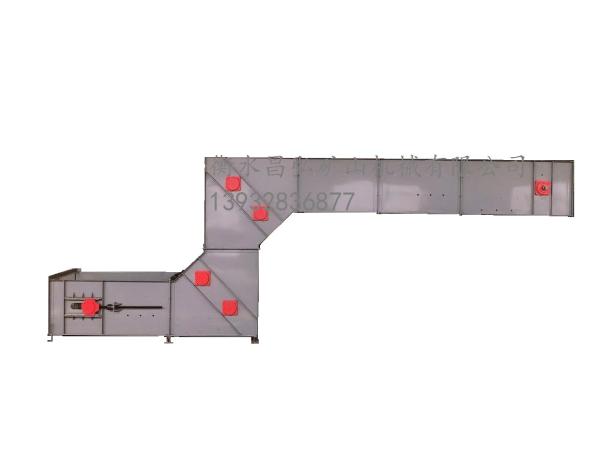

    Z type bucket conveyor elevator (also called bucket conveyor) consists of frame,buckets,chains,sprockets,control box and other accessory are used to vertically convey bulk or loose materials efficiently.Bucket elevators can elevate a variety of bulk materials from light to heavy and from loose,flowing fine materials to larger,partially fragile objects.There are options for buckets that are gentle on high value consumer products such as cereals,pasta,confectionery,coins,animal feet and the like. They are commonly designed in a “Z-Elevator” or “C-Elevator” configuration

    Carbon Steel Industrial Bucket Elevators Heat Resistant Energy Saving

    Applied field

    Z type bucket elevatory is applied for the listing of frangible and non-frangible material such as cheese ball,cookies,potato slice,fried chips,prawn cracker, grain, crispy rice,dog food,fish feed,american almonds,pistachio and medicine etc.

    Sizing Table

    CHZD-3

    CHZD-6

    CHZD-10

    CHZD-15

    CHZD-20

    CHZD-25

    CHZD-30

    CHZD-35

    Transmit Mass

    100%

    m3/h

    6

    15

    22

    30

    45

    56

    68

    80

    75%

    4.5

    11

    16.5

    22.5

    33.5

    42

    51

    60

    Bucket

    Volume

    L

    3

    6

    10

    15

    20

    25

    30

    35

    Width

    mm

    370

    470

    870

    500

    560

    690

    815

    940

    Distance

    mm

    228.6

    330

    Chain

    QTY

    --

    2

    Pitch

    mm

    38.1

    66

    Single chain break loading(KN)

    minimum

    37.6

    90

    Chain Wheel

    Teeth QTY

    --

    26

    22

    Pitch cercle

    diameter

    mm

    316.09

    463.76

    Bucket

    running speed

    m/s

    ≤0.3

    ≤0.25

    Transmission shaft revolution

    r/min

    ≤0.3

    Max elevating height

    m

    ≤45

    Max horizontal transport distance

    m

    ≤100

    Total Power

    KW

    0.75-22

    1.1-22

    2.2-22

    5.5-22

    5.5-30

    Carbon Steel Industrial Bucket Elevators Heat Resistant Energy Saving

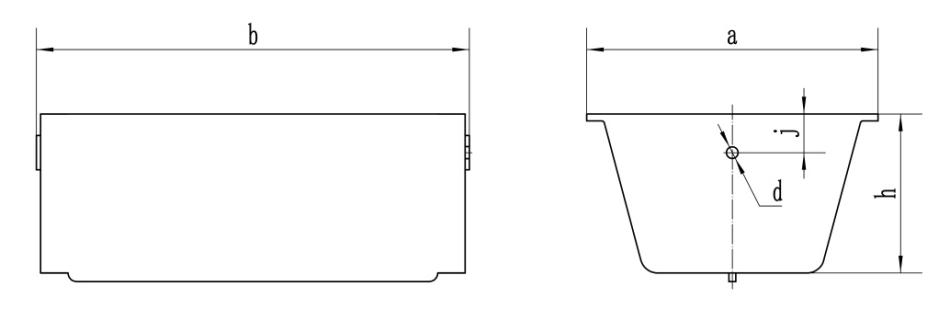

    Bucket Specification Size

    Item

    Width(mm)

    Volume(L)

    Size

    CH3-10 Drawing

    a

    h

    d(H12)

    j

    CH3

    370

    3

    235

    120

    Φ13

    20

    CH6

    470

    6

    CH10

    870

    10

    CH15-35 Drawing

    CH15

    500

    15

    340

    195

    Φ12

    45

    CH20

    560

    20

    CH25

    690

    25

    CH30

    815

    30

    CH35

    940

    35

    It can be used in any form
