    Food Grade Z Type Bucket Elevator System

    Ask Lasest Price
    Brand Name : Changhong
    Certification : ISO,SGS,SONCAP
    Price : USD980-2500/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100sets/month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Food Grade Z Type Bucket Elevator System

    304 Stainless Steel Z Type Bucket Conveyor

    Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.

    Food-Grade Z Type Bucket Elevator Conveyor for Packaging System


    Features:
    1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.

    2. Vertical conveyor for feeding dry products up vertically and discharging them into a hopper of either a multihead or a linear weigher.

    3. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.

    4. The geared reducer motor drived the machine have a stable performance prolong the machine life and easy to maintainance.

    5. Optional:
    Standard discharge height 3.25 Metres(10.66ft), heights customize available.
    Stainless steel construction with optional painted version also available.
    Discharge height and discharge positions can be built to clients requirements

    Food-Grade Z Type Bucket Elevator Conveyor for Packaging System
    Food-Grade Z Type Bucket Elevator Conveyor for Packaging System



    Specifications
    NameBucket elevator
    Bucket Volume1L/1.8L/3.8L/6.5L
    Machine structure#304 stainless steel or carbon steel.
    Production capacity2-3.5 / 4-6 / 6.5-8 / 8.5-12m3/H
    Machine height3896mm for standard (1.8L) or customization
    Discharge height3256mm for standard (1.8L) or customization
    Hopper materialFood grade PP/ABS
    Power supplyAC 220V Single phase / 380V, 3 Phase, 50Hz; 0.75kw
    Packing Dimension2050 (L)*1350 (W)*980mm (H) for standard (1.8L)

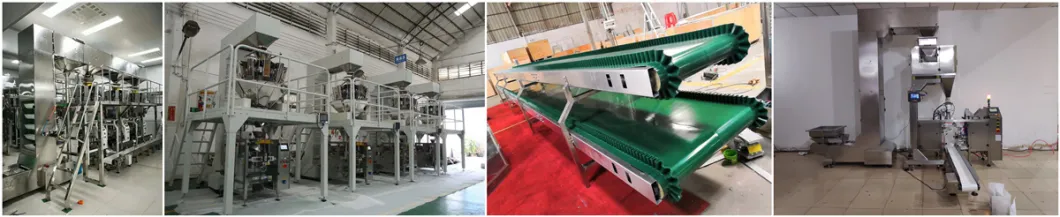

    Cases we did
    Food-Grade Z Type Bucket Elevator Conveyor for Packaging System

    About Shipping
    Food-Grade Z Type Bucket Elevator Conveyor for Packaging System


    Our services
    Pre-sales
    1. Within 2 hours inquiry feedback between 8:00am--20:00pm
    2. 24 hours technical proposal
    3. Full assistance product selection
    4. Free for designing and drawing
    In-sales
    1. 4 times producing feedback
    2. Full supervision during production
    3. 24 hours standby to make sure you can find us
    4. Free installation and debugging before delivery
    5. Free for training operator and mechanic
    After-sales
    1. At least 3 times following up
    2. Email or online help after good arrived
    3. Oversea installation and testing is available
    4. Cost price for maintaining the machine and accessories beyond one year warranty.


    FAQ
    1. Trade terms: EXWORK,FOB,CIF,CFR
    2. Payment terms : T/T 30% deposit, 70% balance before delivery
    3. Delivery Time : Usually 25-35 days, depends on different order quantity.
    4. Shippment : By sea, by air ,by railway or by truck, according to customer requirement
    5. Packing :Bubble film wrapping inside, Export Standard Plywood Case outside.
    6. Warranty :One year free for replacement of wearing parts, cost price beyond warranty
