Chang Hong Mining Machinery Co., Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | ChangHong |
| Model Number : | WQCH104 |
| Certification : | ISO |
| Price : | US$10-100 per piece |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000 pieces per 30days |
| Delivery Time : | 5-15 work days |
Mining Steel Roller Conveyor Systems Heavy Duty Belt Conveyor Steel Idler Roller For Belt Conveyor System
Conveyor Idler Roller Manufacturer Customized Belt Conveyor Roller For Coal And Mining Industries
| product name | carbon steel roller |
| Usage | Conveyor Belt System |
| customize | can |
| Advantage | waterproof,dustproof |
| Material | carbon steel |
| color | can customize |
| Type | Flat/Buffer/Cleaning |
| Material | steel carbon steel |
Roller is an important component of belt conveyor.It has many kinds and large quantity,can support conveyor belt and material weight.
| Product Specification | ||
| Item | Heavy duty industry steel conveyor roller | |
| Diameter | 89-159mm | |
| Length | 190-1500mm | |
| Material | Carbon steel | |
| Seal | Multiple labyrinth seal | |
| Bearing type | Deep Grove ball bearing | |
| Gurantee | 12 months | |
| Color | Customized | |
| Certificate | ISO,CE | |
| Advantages | waterproof,dustproof,smooth running,no noise,rotational resistance,
axial float, shaft radial play | |

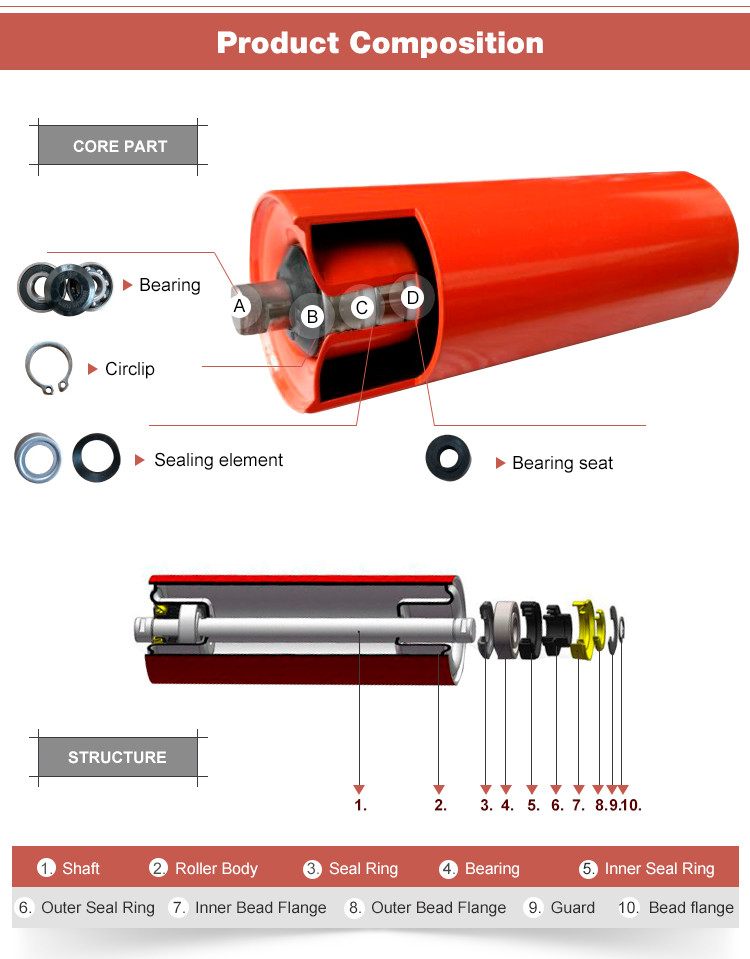

Features:
A) Bearing: deep groove ball and double sealing bearing 2RZ and 2Z with C3 clearance;
B) Sealing: multi-stage labyrinth seals achieve waterproof and dust proof
C) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors, grease is permanent lubricant.
D) Color: roller surface could be painted any color as per customer request.
E) Each roller would be through strict inspection and test to ensure every out coming roller is of true high quality;
Quality design and build
Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.
Function
The role of idler is to support the weight of conveyor belt and
material. The operation of idler must be flexible and reliable.
Reducing the friction between conveyor belt and idler plays a key
role in the service life of conveyor belt which accounts for more
than 25% of the total cost of conveyor. Although the idler is a
small part in the belt conveyor and its structure is not complex,
it is not easy to make high quality idler.
There are several criteria to judge whether the idler is good or
bad: the radial runout of the idler; the flexibility of the idler;
the axial displacement
We have our own factory located in Hebei, China.
Q1. Can I have a sample order for conveyor roller
Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green
channel.
Q3. Do you have any MOQ limit for conveyor roller order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on conveyor roller product?
Yes. Please inform us your logo or design before mass production
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you do not see the question you are looking for, please contact us for further assistance.
